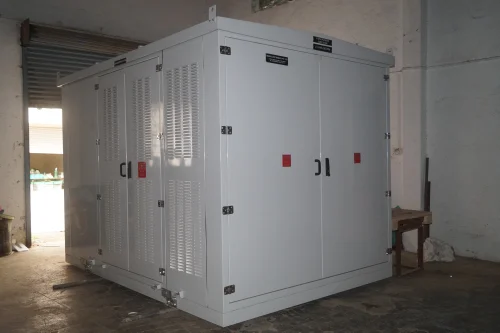

Top Compact Substation Manufacturers in Pune
Unique Power Solutions is Authorized Compact Substation Manufacturers in Pune, Suppliers, Dealers and Traders in Pune, Maharashtra. We also deal in high quality Compact Substations, including solutions like 3 Phase Compact Substation, which are designed to provide stable distribution of power and safety.
Being an ISO-certified firm, we employ more than 120 professional employees thus delivering accuracy, stability, and smooth operations in terms of industrial and commercial use. Our solutions are a combination of high end technology, durable design and unrivalled expertise to enable your electrical infrastructure to work effectively.
About Compact Substation
A Compact Substation is a fully assembled and pre-fabricated electrical assembly and is used in the distribution of power efficiently in small areas. It has transformers, switchgear and control systems built into one enclosure to ensure safety and reliability. It is perfect to be used in industries, commerce, and urban use and guarantees continuous power with minimal care.
Types of Compact Substation
We are leading Compact Substation Manufacturers in Pune, we provide indoor and outdoor compact substations for various power distribution needs.
- Indoor Compact Substation: It is installed within buildings and it provides a safe and reliable power distribution as well as safeguarding equipment against indoor conditions. It can be used in a commercial and industrial setup where there is a space constraint.
- Outdoor Compact Substation: It has an open-area design, which offers tough performance and effective power control in the extreme weather conditions. It offers excellent safeguarding to transformers and switchgear.
- Pole-Mounted Compact Substation: It is tall and slim and efficient in the dispersal of power both in the cities or in isolated regions and it also conserves space on the ground. It is ideal in the localized power supply requirements.
- Modular Compact Substation: It is portable and adaptable in nature making it easy to expand and customize it to suit the increasing energy needs. It has a modular design which makes it easier to install and maintain.
- Concrete Compact Substations (KBTS): These units are made of powerful concrete housings that sustain adverse environmental and operational conditions. They have high endurance of use in hard applications.
- Aluminium/Sheet Metal Substations (LMTS): These substations are light and versatile with flexible housings of transformers and switchgear, often integrated with a Unitized Substation Transformer. They are easy to install, and they have low maintenance needs.
Technical Specifications of Compact Substation
As Compact Substation Suppliers in Pune, we have added here a table of technical specifications for these substations.
| Parameter | Specification |
|---|---|
| Standards & Compliance | Designed as per IEC 62271-202 for tropicalized conditions with high-level internal arc safety |
| Rated Voltage (MV/LV) | 11 kV / 415 V, 22 kV / 415 V, 33 kV / 415 V |
| Power Rating | Up to 1600 kVA standard, up to 3500 kVA (oil-type), 4000 kVA (dry-type) |
| Frequency | 50 Hz or 60 Hz, suitable for applications like a 50 Hz Compact Substation |
| Enclosure Material | Galvanized Sheet Steel (1.5–2 mm) or Concrete |
| Degree of Protection | IP54 / IP55 (weatherproof) |
| Compartmentalization | Separate compartments for HV/MV, Transformer, LV for safety and accessibility |
| MV Compartment (11–33 kV) | Switchgear: Gas-insulated RMU or Air-insulated Switchgear (AIS); Protection: VCB or LBS with SF6 insulation |
| Transformer Compartment | Type: Oil-immersed or Dry-type (cast resin); Cooling: Natural Air Ventilation (ANAN) |
| LV Compartment (0.415 kV) | Switchgear: ACB or MCCB; Current Rating: 630A–3200A |
| Ambient Temperature | Operating range: -5°C to 50°C |
| Safety Features | Internal arc protection, interlocks, emergency ventilation, and robust fault handling |
Features and Benefits of Compact Substation
As Compact Substation Dealers in Pune, we offer space-saving designs with easy installation and minimal maintenance.
- Factory-Assembled & Tested: The Substation is supplied as a complete and tested unit and this guarantees fast installation and minimal effort on the installation part.
- Compact & Space-Saving Design: It has been designed to consume very little space, and therefore it has been useful in the use of congested urban environments at a lower civil engineering and transportation cost, especially in systems like Three Phase Compact Substation.
- Enclosed & Secure: This substation has a weatherproof and tamperproof housing that ensures equipment is not exposed to environmental dangers and improves safety of operations.
- Modular & Flexible: It is easy to transport, install, and reconfigure in the future by its modular design to suit future changing power needs.
- Integrated Components: HV switchgear, transformer, and LV panel are joined together as one structure enhancing reliability, lessening maintenance, and making them operational within a shorter time, including capacities such as 500KVA Compact Secondary Substation.
Applications of Compact Substation
As Compact Substation Traders in Pune, our substations are widely used in residential complexes, commercial buildings, and industries.
- Urban Infrastructure: It is best suited in the high-density residential zones, commercial complexes and shopping malls that need safe and reliable local power.
- Renewable Energy Integration: The substation makes the connection of the solar farms, wind power generators and other renewable energy installations on the grid easy.
- Industrial Plants: It provides constant, localized power to the manufacturing plants, high voltage equipment and production plants.
- Infrastructure Projects: The substation is applicable in the railways, metro, mining, and temporary construction sites that require a strong power supply.
- Specialized Locations: It works effectively in the basement, parking lots, underground network and other limited space and secure power needs.
Why Choose Us?
- Proven Expertise: We possess over 120 experienced engineers who produce each Compact Substation with accuracy and quality to the international standard.
- Trusted by 4200+ Clients: We have over 4200 happy consumers and this has been a sign of reliability, punctuality, and high performance.
- ISO-Certified Innovation: As Compact Substation Suppliers in Pune, we have modular, efficient and safe, ISO-certified standards of power solutions to various applications.
Unique Power Solutions is a leading Compact Substation Manufacturers in Pune, Suppliers, Dealers and Traders in Pune. With 30+years of strong industry expertise and a commitment to excellence, we provide advanced compact substations tailored to meed the divers industrial, commercial a needs. All of our units are manufactured with accuracy, quality checked and supplied with professional services to operate smoothly. Our mission is to provide the best, space-efficient and sustainable solutions that will enable our clients to have uninterrupted power and sustainability. Contact us for more details.
FAQ’s
They normally operate at 11 kV, 22 kV or 33 kV on the MV (and 415 V on the LV) with powers up to 3500-4000 kVA.
Yes, they include internal arc protection, tamper-proof enclosures as well as interlocks, which makes them safely operate in residential and commercial environments.
Absolutely, they enable smooth integration of the grid of solar farms, wind power generators and other renewable energy installations.
